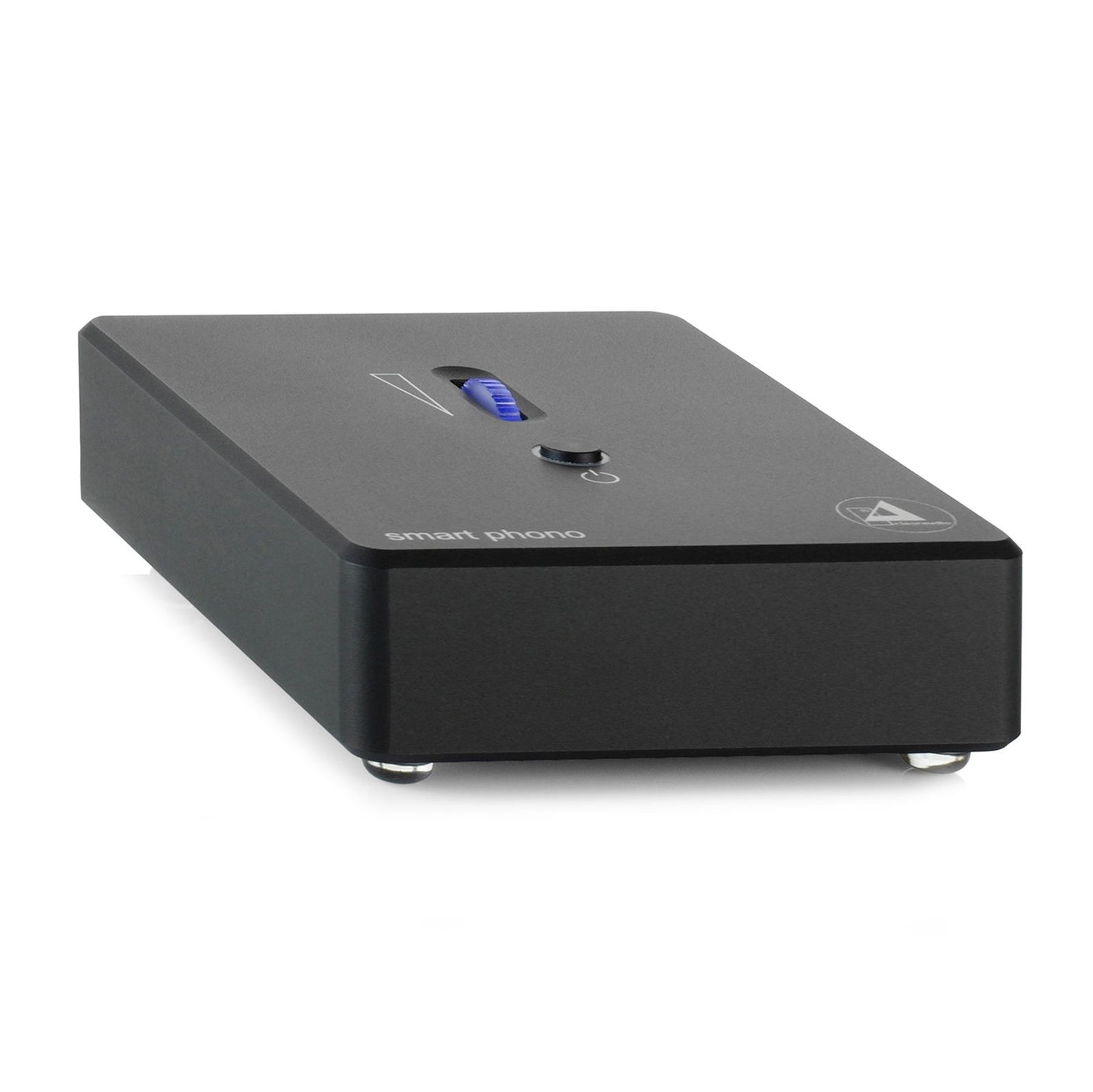

Clearaudio Smart Phono V2

MODE:

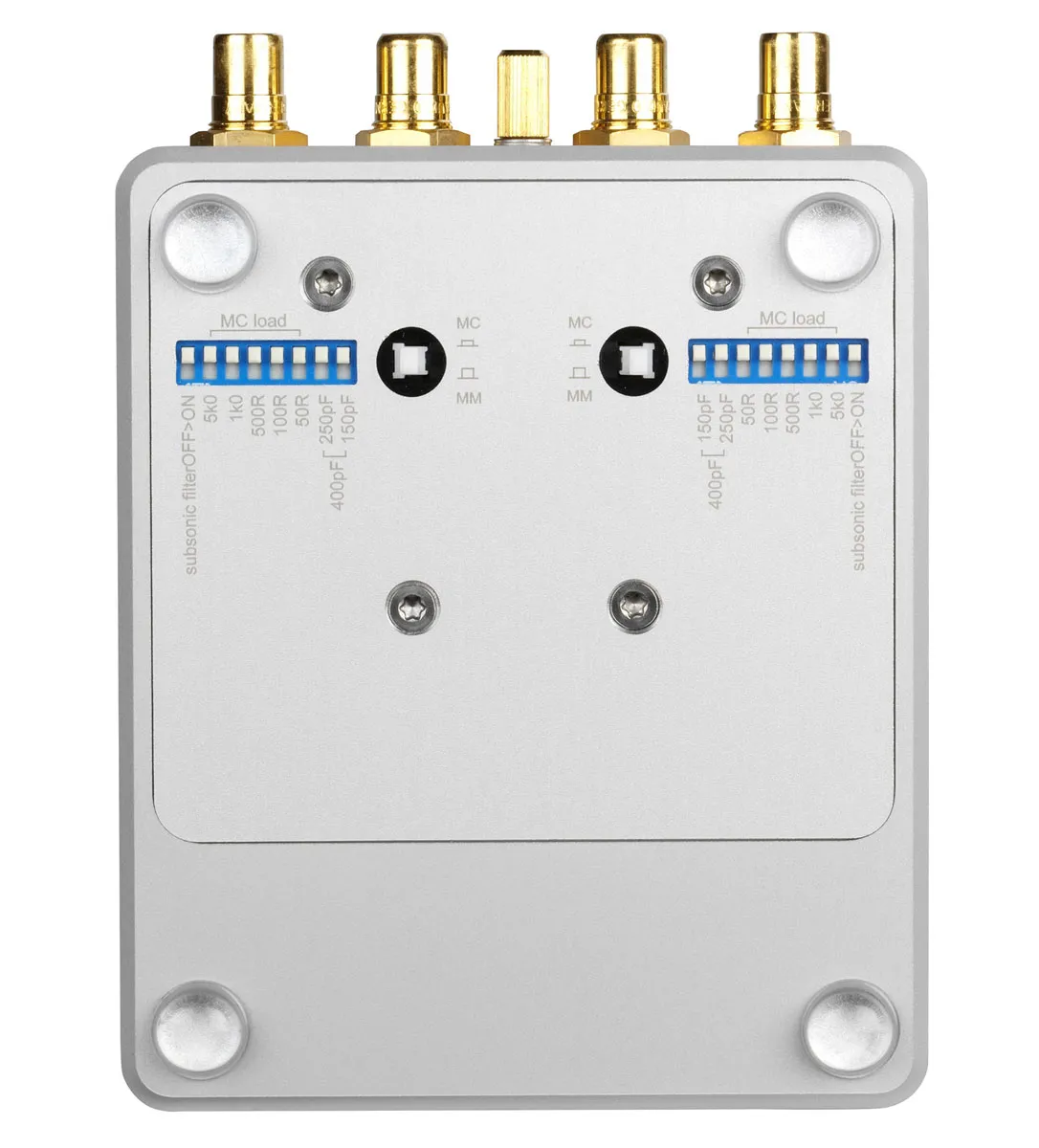

MM / MC switchable with jumper (on underside)
Subsonic filter switchable with jumper (on underside)
GAIN AT 1 kHz:
34 dB (MM mode)
54 dB (MC mode)
INPUT IMPEDANCE:
50 Ω, 100 Ω, 500 Ω, 1 kΩ,
5 kΩ / 150 pF, 250 pF, 400 pF (MC mode)
47 kΩ / 150 pF, 250 pF, 400 pF (MM mode)
RIAA ACCURACY:
± 0.3 dB @ 10 Hz – 100 kHz

DISTORTION:
< 0.004 % MC (“A” @ 1 kHz / -1 dB @ MAX)

SIGNAL-TO-NOISE RATIO:
85 dB (A) (MM mode)
72 dB (A) (MC mode)
OVERLOAD MARGIN:
18 dB / MC (Gain Control on MAX)

MAXIMUM OUTPUT VOLTAGE: 10 V RMS (1 kHz)
RECORDING CHARACTERISTIC EQUALISATION:
According to RIAA (time const.: 75 μs / 318 μs / 3180 μs)

CHANNEL SEPARATION: > 90 dB @ 1 kHz, opposite channel short-circuited
OUTPUT IMPEDANCE: 75 Ω
INPUTS: unbalanced (RCA)
OUTPUTS:
unbalanced (RCA)
optional headphone output (jack: 3.5 mm)
POWER CONSUMPTION:
Max. power consumption: 2.7 watts
In operation: 2.7 watts
Switched off: 0.0 watts
POWER SUPPLY: ± 18 V DC / 300 mA (external plug-in power supply, plastic housing)
WEIGHT: approx. 620 g (preamplifier and power supply)
DIMENSIONS (W/D/H): approx. 95 × 125 × 34 mm
